conveyor bracket

conveyor bracket

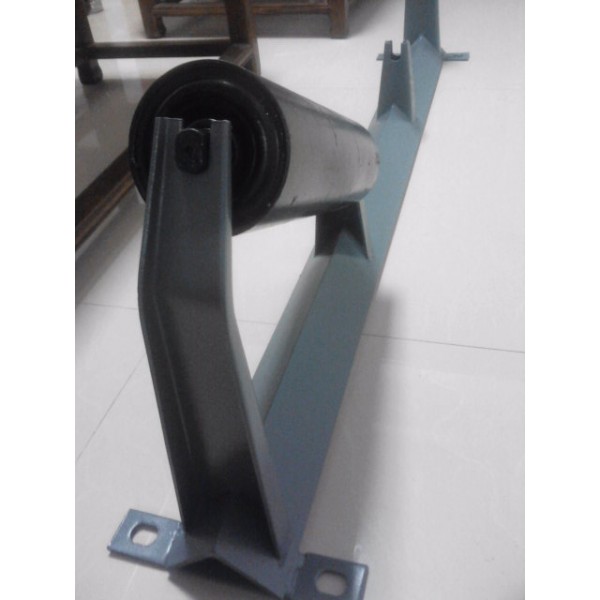

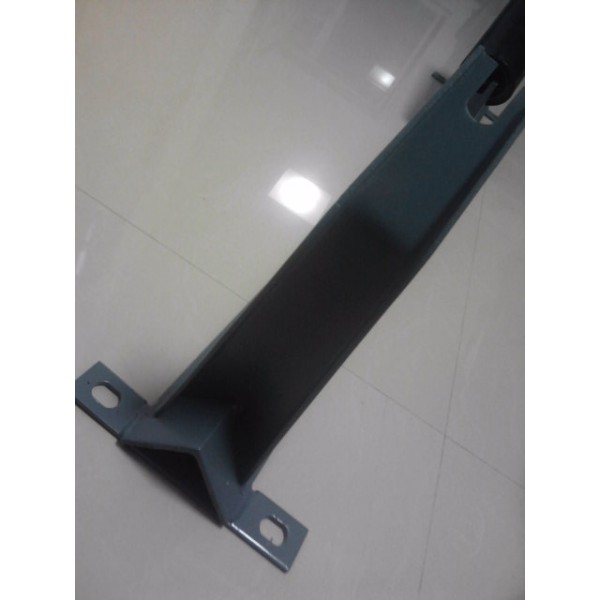

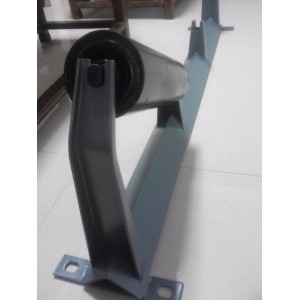

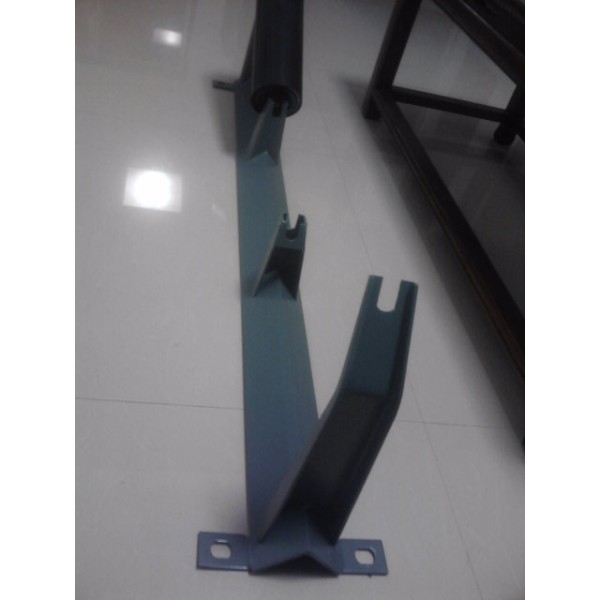

 Conveyor Frame/Bracket


· Tube(pipe) material: carbon steel pipe

· Tube(pipe) diameter:89-217 mm

· Tube(pipe) wall thickness: more than 5 mm or as clients' requirements

· Tube (pipe)length: 180-3350mm

· Shaft diameter:20-70 mm or as drawing

· Shaft external length: 10-40 mm on each side or as drawing

· Distance between each idler frames ranges from 900 mm to 1500 mm Roller

· Distance are generally fixed at 1 meter to 1.5 meter gap

· Belt width ranges from 300 mm to 2000 mm

· Idler bracket is fabricated from mild steel


Gravity roller conveyor idler brackets is a kind of machine that transfers the material continuously. The belt works under the effect of frictional force. It is not only the component to transfer the material, but also the component to transfer the force. The belt conveyor is advanced and simple in structure, easy to maintain. Its transfer capacity is high and transfer distance is long. They are widely used in mining, metallurgical and coal industry to transfer sandy or lump materials or packaged material. In many situations, it is a very important component of nonstandard machinery.
