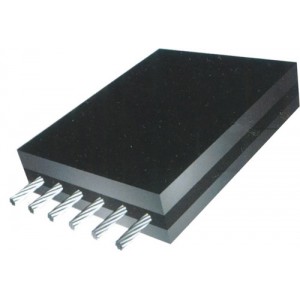

1.Construction
Using high strength grlvanized steel cord and special compound which is with excellent elasticity,not easy to corrode and giving a longer sevice life.
2.Application
Suitable for conveying materials at long distance,big span big load and high speed. The belt has a good trough ability,long service life,small elongation,good fatigue resistance. It can widely be used in coal industry,mine,ports,power plants,metallurgical and construction industries.
3.Specification
Intensity:630N/mm~5400N/mm
Width:800mm~2200mm
4.Product parameters
Form 1
| Type | ST800 | ST1000 | ST1250 | ST1600 | ST2000 | ST2500 |
| Longitudinal tensile strength (N/mm) |
800 | 1000 | 1250 | 1600 | 2000 | 2500 |
| Steel cord max nominal dia.(mm) |
3.5 | 4.0 | 4.5 | 5.0 | 6.0 | 7.2 |
| Pitch of steel cord(mm) |
10±1.5 | 12±1.5 | 12±1.5 | 12±1.5 | 12±1.5 | 15±1.5 |
| Thickness of top cover(mm) |
5 | 6 | 6 | 6 | 8 | 8 |
| Thickness of bottom cover(mm) |
5 | 6 | 6 | 6 | 6 | 6 |
| Note: Cover Thickness,cord diameter and cord pitch can be negotiated with customers. | ||||||
Form 2
| Type | ST3150 | ST3500 | ST4000 | ST4500 | ST5000 | ST5400 |
| Longitudinal tensile strength (N/mm) |
3150 | 3500 | 4000 | 4500 | 5000 | 5400 |
| Steel cord max nominal dia.(mm) |
8.1 | 8.6 | 8.9 | 9.7 | 10.9 | 11.3 |
| Pitch of steel cord(mm) |
15±1.5 | 15±1.5 | 15±1.5 | 16±1.5 | 17±1.5 | 17±1.5 |
| Thickness of top cover(mm) |
8 | 8 | 8 | 8 | 8.5 | 9 |
| Thickness of bottom cover(mm) |
8 | 8 | 8 | 8 | 8.5 | 9 |
| Note: Cover Thickness,cord diameter and cord pitch can be negotiated with customers. | ||||||
