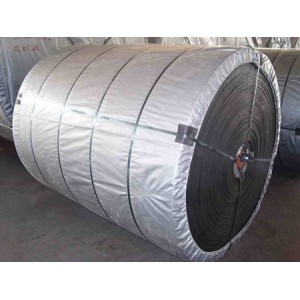

nylon conveyor belt

nylon conveyor belt

1. Product Description:

   Nylon conveyor belt is characterized by thin belt carcass, high strength, shock resistance, good performance, large layer to layer adhesion, excellent flexibility and long service time, applicable to conveying of the heavy product at high speed in middle and short distance.

2. Nylon conveyor belt physical mechanical properties:



Performance level of the cover layer

symbol

The tensile strength shall be no less than

Rate of elongation at break shall be no less than

Abrasion wear mm3shall be no more than

MPa

Kgf/cm2

Heavy;

H

24

240

450

120

Common;

D

18

180

400

100

Light;

The

15

150

350

200



3. Layer to layer adhesion strength:



Indicators

Inter-layers

Inter layer between Cover layer and belt carcass

0.8-1.5mm Thickness of cover layer

0.8-1.5mm

>1.5mm Thickness of cover layer more than 1.5mm

Average value of the specimens, N/mm, no less than

4.5

3.2

3.5

Min. peak value of the specimens, N/mm, no less than

3.9

2.4

2.9

Note:the max. Peak value of the specimens shall be no more than 20N/mm.



4. Nylon conveyor belt type

   It is divided into the conventional type , heat resistant type, and flame resistant type, cold resistant type, acid & alkali resistant type, and oil resistant type according to the performance of the cover rubber.

5. Nylon conveyor belt specification:
   (1)Material of belt core: Cotton, Nylon, EP or Steel Cord .
       CC-56、NN100、NN150、NN200、NN300、NN400

   (2)Side Wall Conveyor Belt Width: :100mm-2200mm

   (3)Layer of cloth; layer from 2 to 10

   (4)Side Wall Conveyor Belt Cover rubber:

      top side: 1.5-8mm

      bottom side: 0mm-4.5mm

The standard meets with GB/T7984-2001.
